Igniter Instrumentation Test - June 24th, 2022

This is the earliest completed test of the team's own hardware found in the surviving archive. A custom Arduino-based data-acquisition box recorded thermocouple and electrical measurements from an igniter burn.

Result

The processed record reported a peak temperature of 1,368 °C and about 9.17 seconds above 1,000 °C. These are historical processed values, not a new analysis of the raw sensor signal.

Download the raw and corrected temperature data

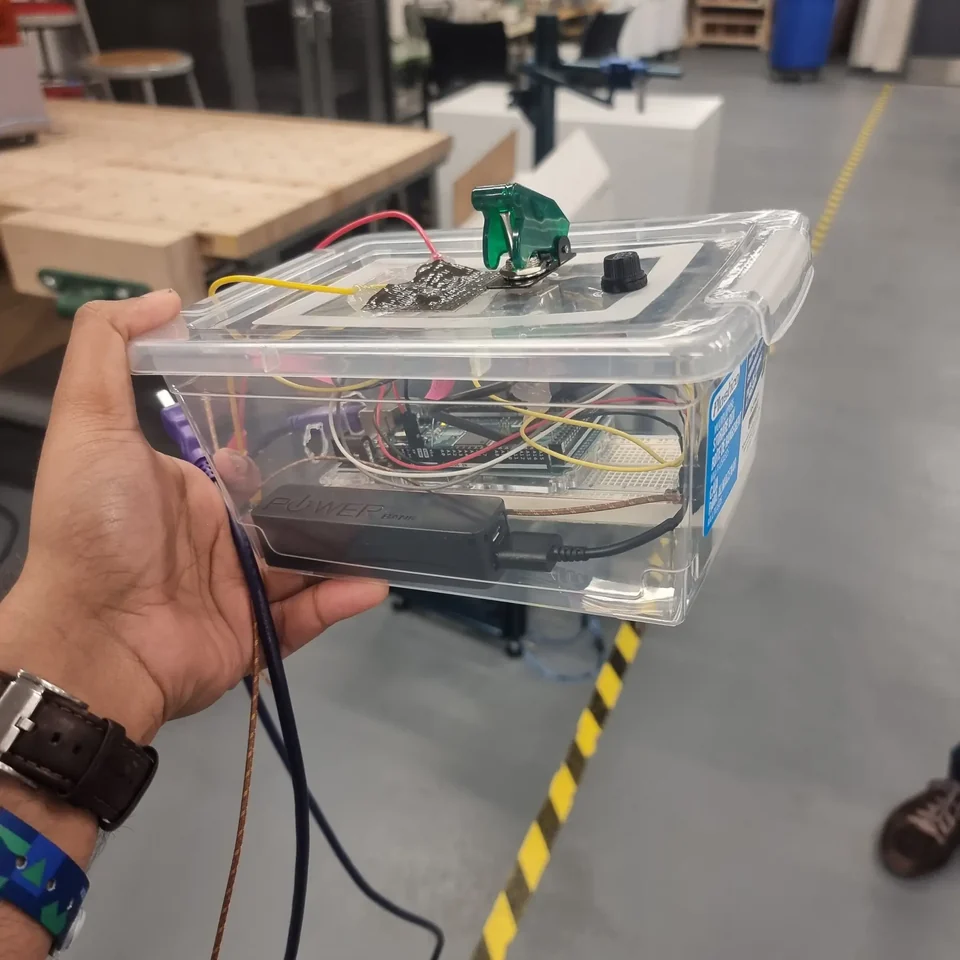

Arduino and thermocouple data-acquisition hardware used for the June 2022 igniter test
Igniter data-acquisition hardware.

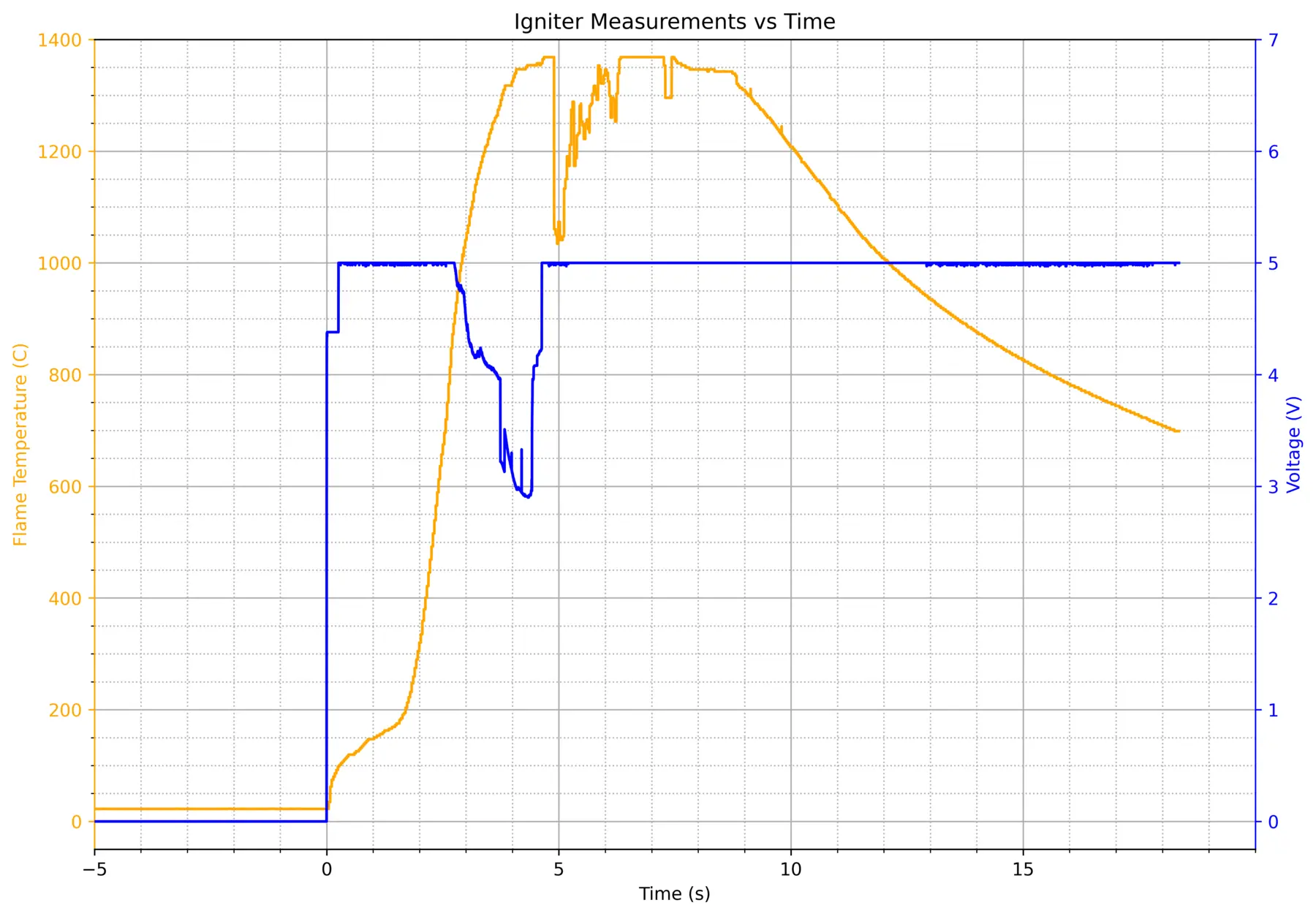

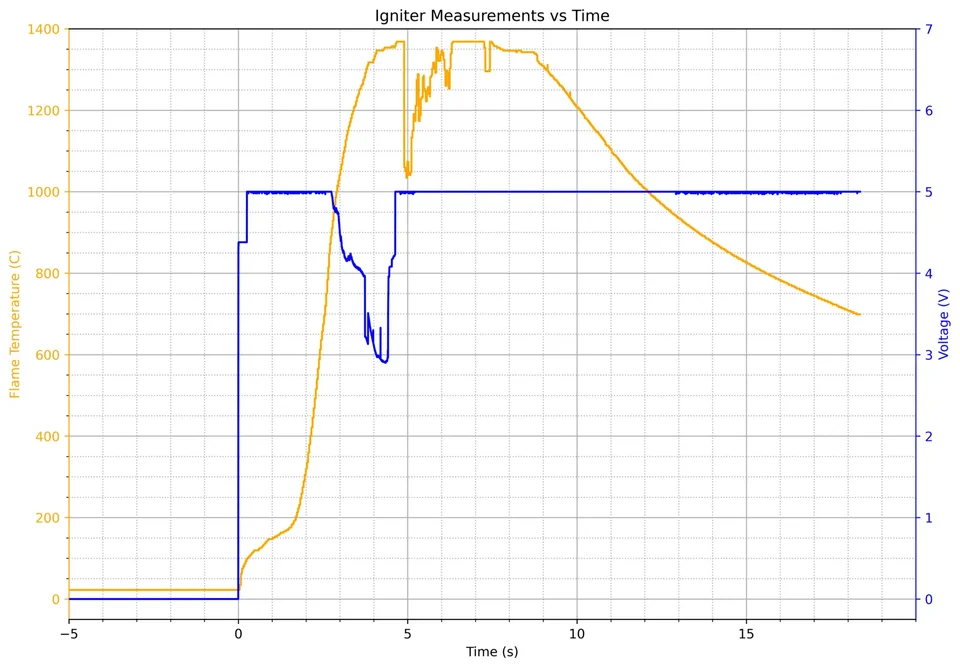

Processed temperature plot from the June 2022 igniter test
Processed temperature record preserved with the test.
