Seraphina Hot Fire Test - August 6th, 2026

Two firing attempts were recorded as logging runs 7 and 8. The first attempt did not ignite after the installed e-match failed its continuity check. The main valves still flowed propellant, producing a 29.22 psi chamber-pressure reading and a 172.11 N load-cell signal; neither value represents a hot-fire thrust result. The second attempt produced the sustained burn shown below, reaching 254.36 psi chamber pressure and 1,233.28 N peak thrust. Its oxidizer and fuel tanks peaked at 660.56 psi and 651.25 psi. The team loaded 4.62 kg of nitrous oxide and 2.20 kg of ethanol for the campaign.

Second-attempt sequence

The ignition command defines t = 0 on the graph. The logger recorded ignition confirmation at t = 0.13 seconds, the main oxidizer and fuel valve command at t = 0.75 seconds, and entry into the engine-run state at t = 1.31 seconds. Chamber pressure and thrust reached their peaks near t = 3 seconds. The purge command followed at t = 9.97 seconds, giving 8.66 seconds in the engine-run state; the team reported an 8.2-second measured burn. Measured tank mass fell from about 7 kg before valve opening to about 1.3 kg after the burn.

Failure and Data Limits

The igniter cartridge plug, retained by a hose clamp, failed during the successful attempt. Contemporary test notes report a resulting loss of chamber pressure and thrust. Later discussion considered backflow and a missing check valve as possible contributors, but the archive does not establish either as the cause.

The logger wrote rows at approximately 37.1 Hz, but several rows repeated unchanged sensor values. System-clock and delta-time measurements agree on that row rate. After duplicate values were removed without smoothing, the usable new-value rates were 8.2 Hz for tank pressure, 8.1 Hz for chamber pressure, 7.2 Hz for thrust and 6.6 Hz for tank mass. The graph plots those unsmoothed new values.

Test Videos

Test Data

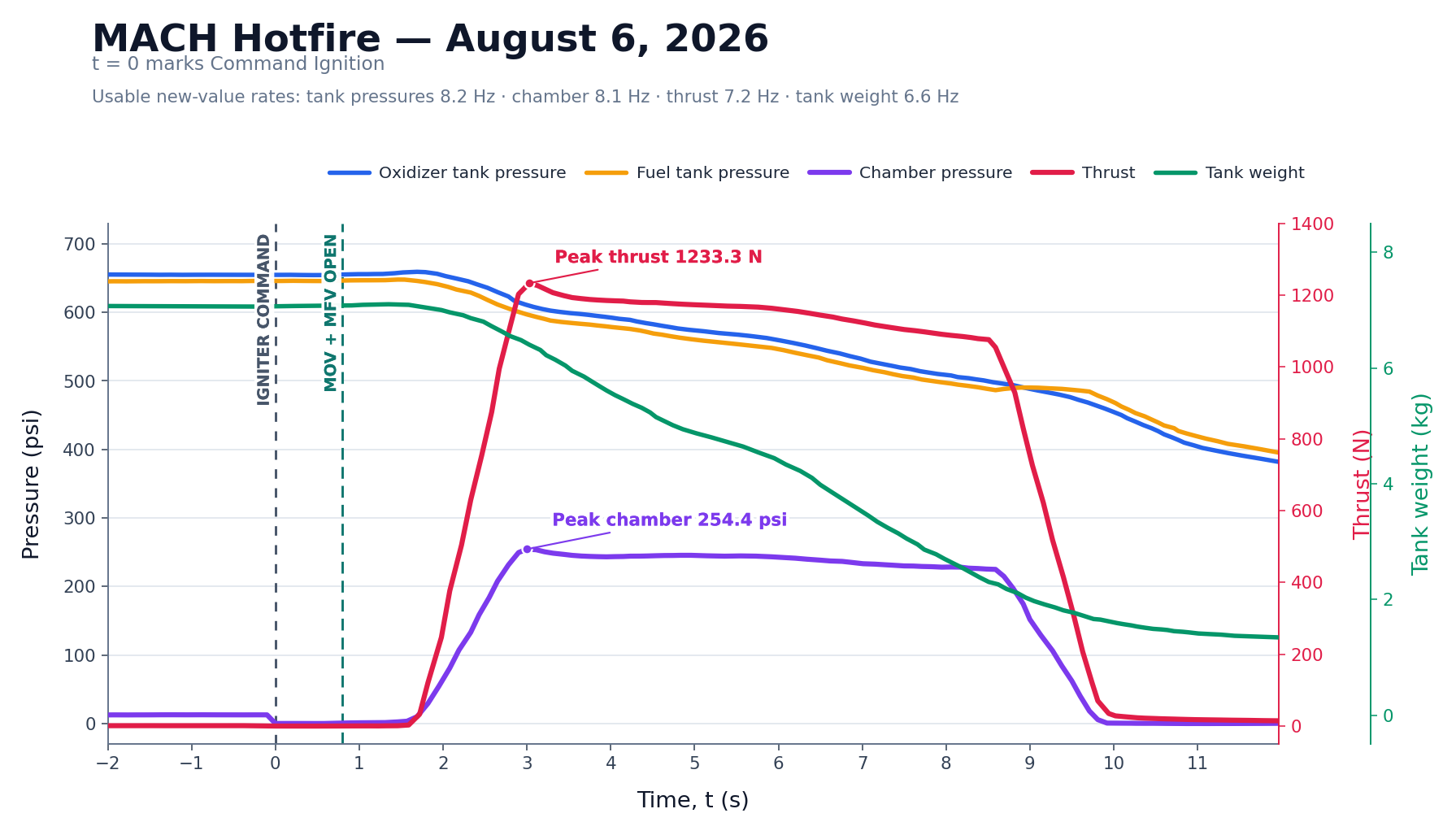

Burn Telemetry

Team Photo
