CAD

This is the page to describe the avionics bay CAD.

Avionics CAD Render

There's just barely enough space to fit the RFD900 on a module. so why not? The challenge is to see if these over hangs can print.

Rack

The rack will use these threaded inserts

3D printing

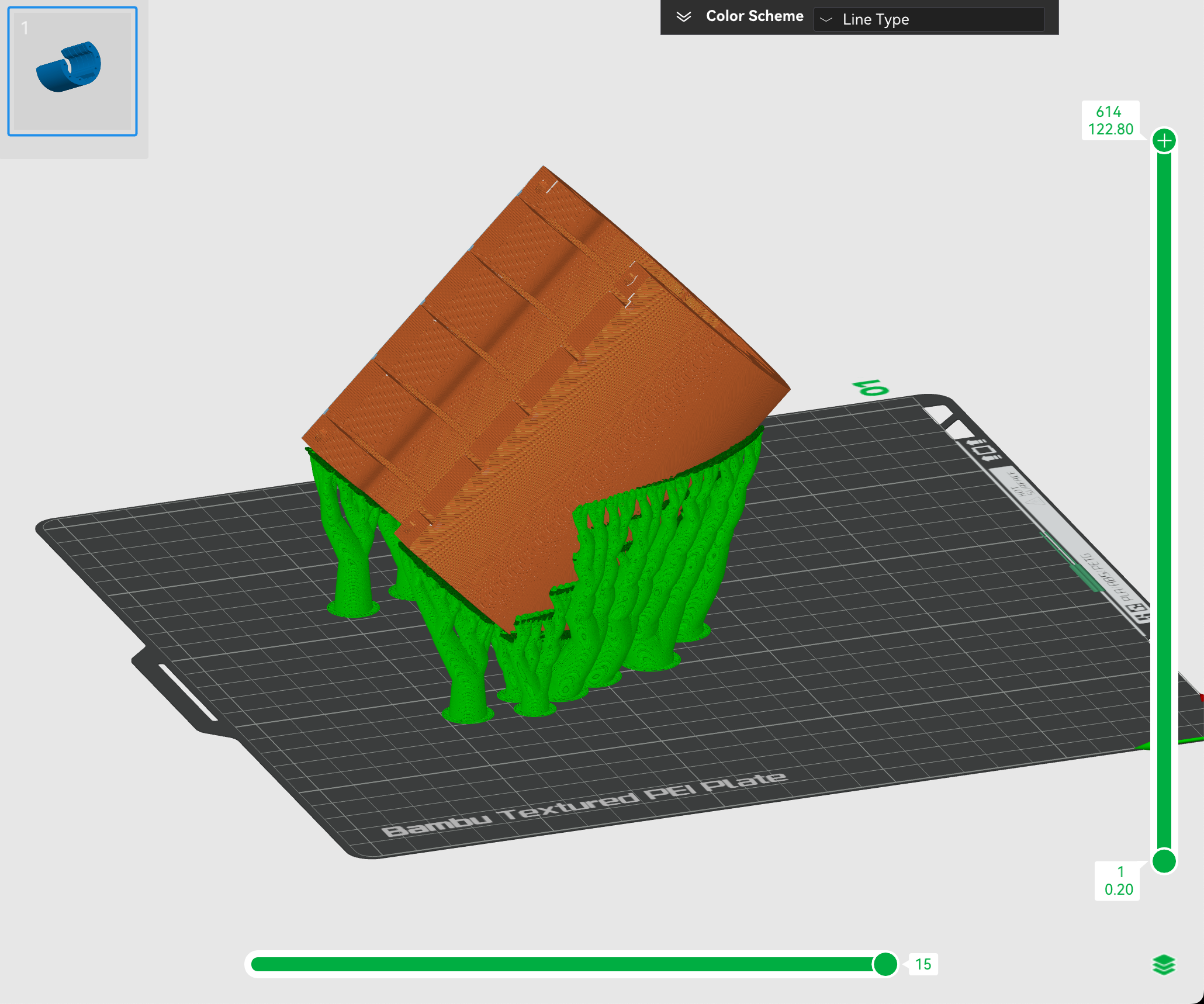

The rack had to be printed at a 45 degree angle.

Slicer Render
